CE ISO UN8003 Medical Electrocardiograph Three Channel ECG Machine
with Touchscreen
Advantages:
- 3 channel ECG machine with automatic interpretation
- Manual/Auto working Modes
- Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.
- 4.3 inch Color TFT LCD display ECG wave and friendly menu setting.
- Support touch panel and keypad input ways
- Support SD card storage.
- 120 seconds ECG wave freeze and replay function.
- Lead-off detection and alert
- Digital filtering, resisting baseline drift, AC and EMG
interference
- Built in USB/RS232 interface(ECGNET software optional)
- Built in rechargeable Li-ion battery support less than 3 hours continuously work.
- AC power supply at 90-240V@50/60Hz
Description:
UN8003 is a portable and high quality 3-channel ECG, which offer not only
normal thermal printing but also external printing solution. It can
used in hosipital, clinic and emergencies.
Specifications:
| Lead | Standard 12 leads |
| Lead acquisition | 16bit/24bit 1000Hz(synchronously 12 leads) |
| Work modes | MANUAL,AUTO modes |
| Filter | AC Flter : 50Hz / 60Hz
EMG Filter : 35Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive) |
| CMMR | 100dB (with AC filter) |
| Input circuit | floating; protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input circuit current | ≤0.05μA |
| Input dynamic range | ±5mVpp |
| Patient current leakage | ＜10μA |
| Calibrating voltage | 1mV±2％ |
| Voltage tolerance | ±600mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05～150Hz(-3db) |
| Noise level | ＜15μVp-p |
| Sensitivity valve | ≤20μV |
| Sensitivity | 2.5, 5,10,20mm/mV |
| Inter-channel Interference | ≤0.5mm |
| Paper speed | 5, 10, 12.5, 25, 50mm/s(±3％) |
Strict QC process:

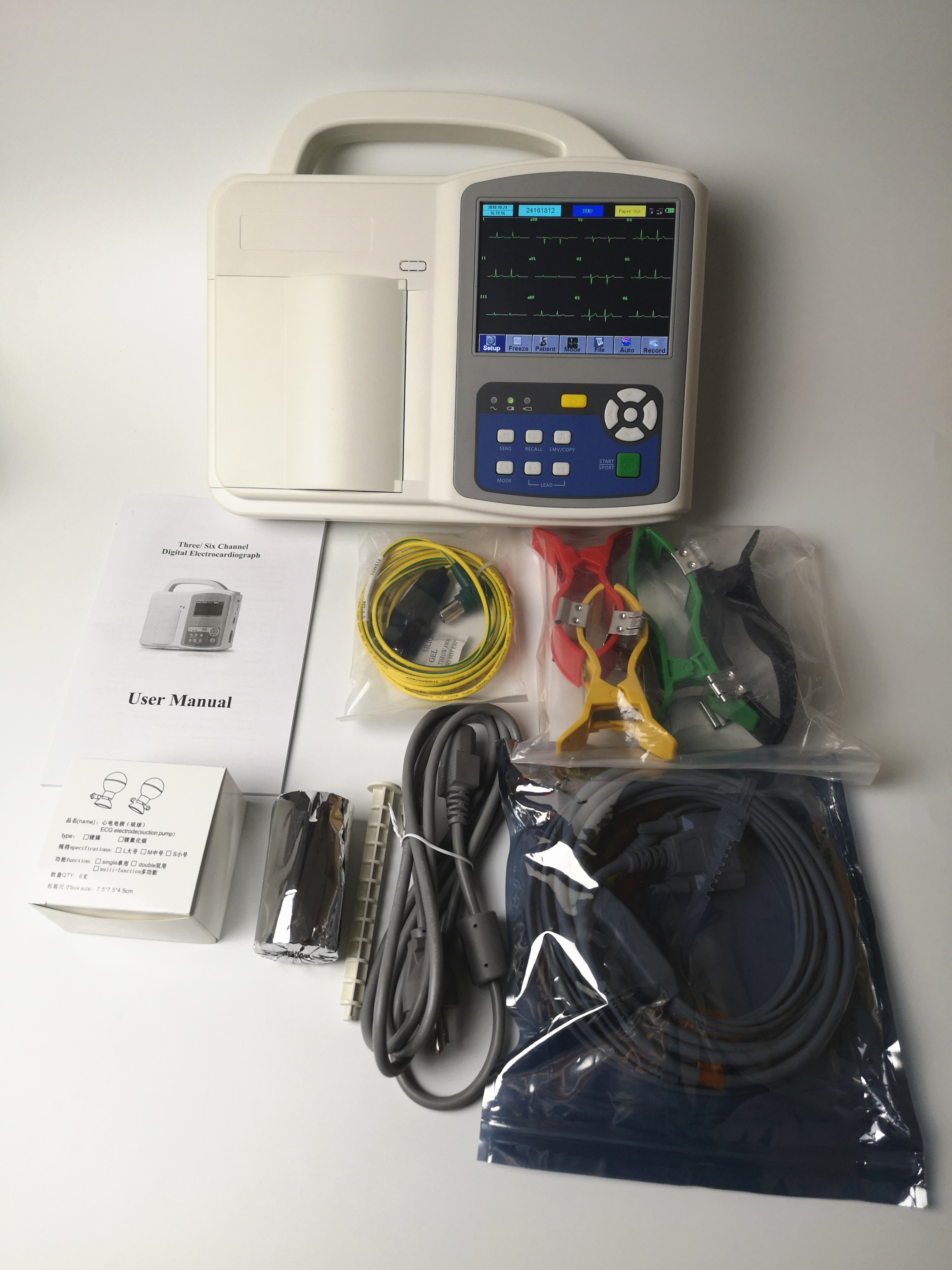

Accessories:
ECG Machine Series products:
Union Medical Product Line:
Packing:
Factory:
Company Profile:
We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which
started in 2009 with leading engineers in China, and established in
2013. Union Medical is committed to the techniques and products of
monitoring, diagnosing ,supporting and treating the biological
information; serving the society; improving human health.
Union Medical focused on the development of patient monitoring solutions with
engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive
solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter
Module, Multigas Module etc.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia
Multigas monitors etc.
