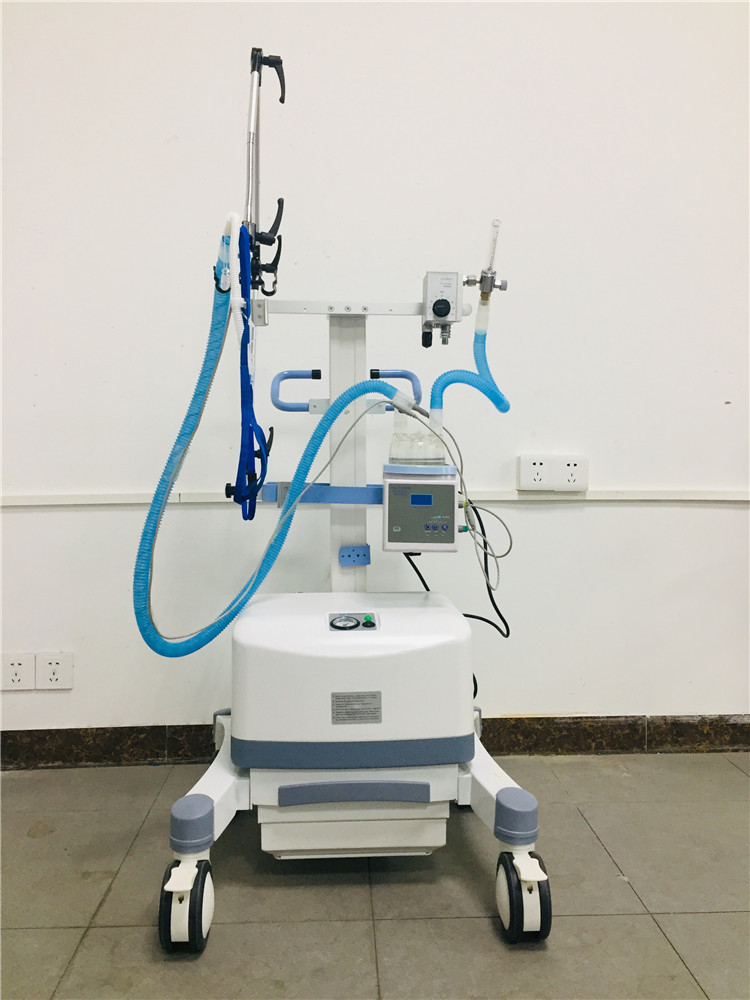

Adult Infant High Flow Nasal Cannula Oxygen Therapy Heated Respiratory
Humidifier HHHF HFNC Machine
Description:
- Medical device treatment: In addition to drug treatment,
respiratory support treatments relying on medical devices, such as oxygen therapy, invasive mechanical ventilation, extracorporeal membrane oxygenation (ECMO), and circulatory support are of much helpful to those the most
serious cases of pneumonia. It also plays an important role in the treatment of critically
ill patients. It is time to introduce our high flow oxygen blender for replacement. It is very helpful for the early infection cases and the recovery patients from critical stages.
- High Flow Nasal Cannula(HFNC) oxygen therapy is a form of non –invasive respiratory support, which comprises an air oxygen blender, an active humidifier, a single heated circuit and a nasal cannula. It delivers adequately heated and humidified medical gas up to 10-120L/min, and is considered to have a number of physiological effects:
reduction of anatomical dead space, PEEP effect, constant fraction
of inspired oxygen and good humidification. It is widely used in RICU and ICU.
Specifications:
| Adjustment Method of Oxygen Concentration | Merchanical |
|---|
| FiO2 | 21%-100% |
|---|
| Flow | 0.1-1 LPM, 1-10LPM, 2-18LPM, 1-15LPM(Infant) 6-60LPM, 7-70LPM, 10-120LPM(Adult) |
|---|
| Pressure of gas source | Air/Oxygen @ 0.3-0.4 Mpa |
|---|
| Blender Alarm | When gas supply pressure difference > 0.1 Mpa |
|---|
| Blender Alarm Noise | >57 dB(A) |
|---|
| Accuracy of FiO2 | 3% |
|---|
| Humidifier Supply Voltage/Frequency | 220V/ 110V 50/60Hz |
|---|
| Humidifier Temperature monitoring | 0-75℃ |
|---|
| Humidifier Heater Plate Over-temperature Cut Off | 95±5℃ |
|---|
| Heater Wire(Max.) | 22V-,2.73A, 60W, 50/60Hz |
|---|
| Humidifier Temperature control settings | Heated wire mode(mode indicator lighted) Temperature grade(with indicator status) Continuous flow range
Delivered patient temperature P1 (●○○) 5L/min-60L/min 25-29℃ P2 (●●○) 5L/min-60L/min 29-35℃ P3 (●●●) 5L/min-60L/min 35-39℃ Non-heated wire mode(It is not recommended in adult HFNC. Operate
manual of humidifier show details) |
|---|

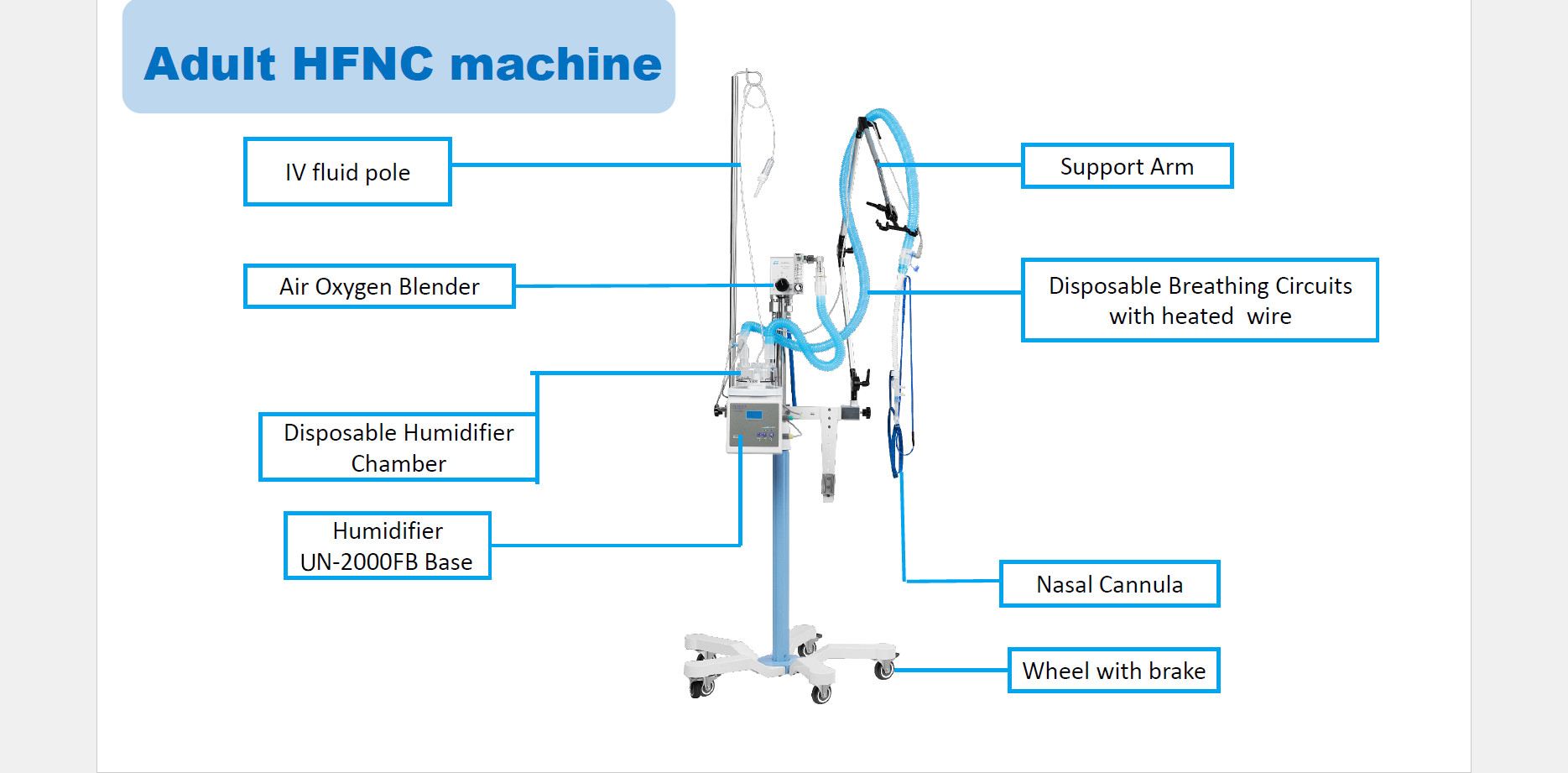

Configuration of HFNC Machine:
Main parts:

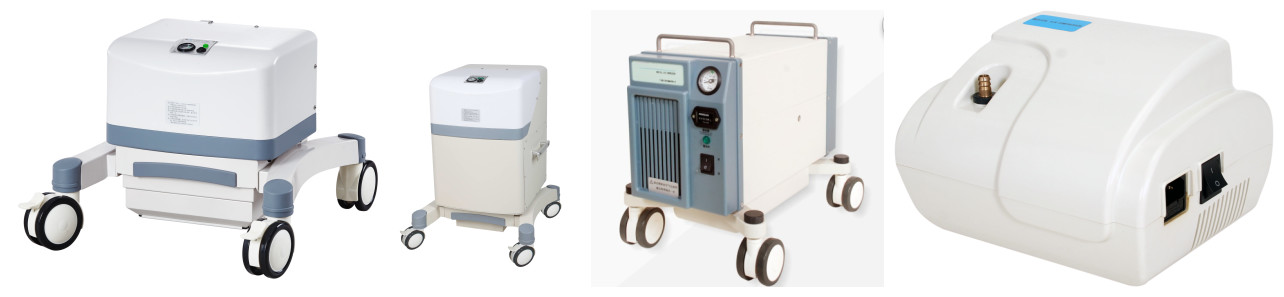

Series products:
Union Medical Other Product Line:
Packing:
Factory:
