Pediatric Adult Patients Emergency First-Aid Transport ICU
Ventilator Machine
Description:
This ventilator is the pneumatically driven electrically controlled ventilation system with compact structure and more functions. The ventilator conforms to the principle of simple and easy operation requested for emergency equipment. It can be used by emergency,
first-aid center and transport. It also can be used for respiratory
care and treatment for the patient.
- Adopt microprocessor-based technology, simple and convenient to use
- Lightweight, reasonable structure is more suitable for the
emergency situation
- 3 kinds of power sources can be chosen: AC, DC and Internal Battery
- Large LCD screen, more parameters can be monitored and displayed
- Adopt electronic adjustment to control the tidal volume, the set
tidal volume is more stable and reliable
- Long life and low consumption solenoid valve with steady function
and dependable quality
- More kinds of oxygen sources, gas supply on the wall or in the
ambulance or carrying oxygen cylinders
Specifications:
| Modes | CMV, A/C, SIMV, SPONT |
|---|
| Tidal Volume | 50~1200ml |
|---|
| Respiratory Rate | 5~60bpm,1-12 bpm for SIMV |
|---|
| Respiratory Rate | 40%~100% |
|---|
| Trigger | -10~0hPa |
|---|
| Max Minute Volume | ≥22L/min |
|---|
| PEEP | 0, 5 ~20hPa |
|---|
| PIP | 0~60hPa |
|---|
| Over Pressure Relief | ≤ 72hPa |
|---|
| Sigh | 0~10 per 100 breath |
|---|
| Base Flow | 0~5 L/min |
|---|
Monitored
Parameters: | Tidal Volume
Sigh
Respiratory Rate
Peak Airway Pressure
Trigger
Airway Pressure
Airway Pressure Wave Form | Alarms: | High Airway Pressure Alarm
Low Airway Pressure Alarm
High respiratory rate alarm
Low Battery Alarm |
Environmental Requirements
| Relative humidity | 15%~95% |
|---|
| Ambient temperature | -18~ 50°C |
|---|
| Atmospheric pressure | 70~110kPa |
|---|
| Gas source | 0.28~0.6Mpa 60L/min |
|---|
| Power | AC100V-240V or DC12V; Li-battery: 2200mAH, rechargeable |
|---|
Classification
ClassⅠ, Type B — by protection against electric shock.
IPX4 — by protection against harmful ingress of water, particulate
matter.
It is suitable for the patient who weighs more than 15KG.

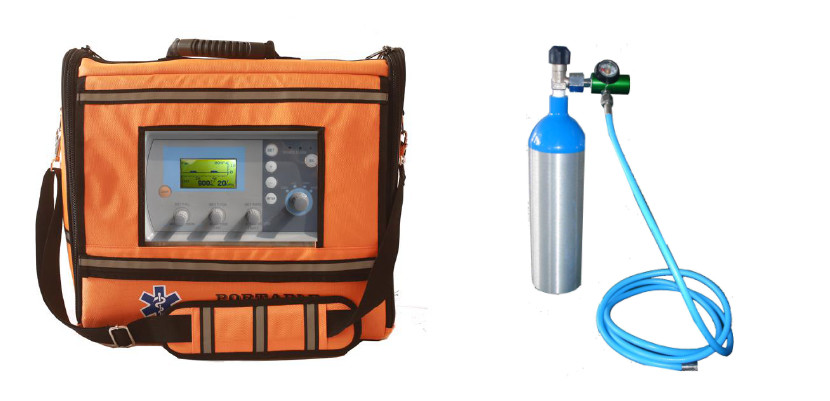

Configuration of UN100C Ventilator:
Standard configuration:
Ventilator, pressure-pressure-reducing valve, high-pressure oxygen
tube, lung simulator, breathing circuit, mask, head band, power
adapter.
