Child Adult Medical Critical-care Emergency First-Aid ICU
Ventilator Machine
Description:
This ventilator is the pneumatically driven electrically controlled ventilation system, adopts a full-computerized and intelligent
control, all parameters can be adjusted continuously. The nixie tube can display real-time data of various parameters at the same time, and has various alarm protection functions. It is an ideal medical equipment of patients with
dyspnea for respiratory recovery and first aid. It is used in ICU Rooms, Emergency Departments and Operating
Rooms. The ventilator is simple and convenient to operate, safe and
reliable in performance and stable in operation. It is an ideal
assistant for medical personnel.
- With multiple functions, and adapt for a variety of occasions.
- With synchronized function and high trigger level.
- Self-set alarm parameters and various alarm protections.
- With Inverse Ratio Ventilation, Sigh and PEEP functions.
- The main components are imported, accuracy and reliable.
Specifications:
| Modes | CMV, CMV+SIGH, A/C, SIMV, MANUAL |
|---|
| Tidal Volume | 50~1200ml |
|---|
| Respiratory Rate | 5~60bpm |
|---|
| FiO2 | 40%~100% |
|---|
| Trigger | -5~10hPa |
|---|
| Classification | Class I, Type B |
|---|
| Inspiratory Time | 0.5~3S |
|---|
| Max Minute Volume | 0≥22L/min |
|---|
| PEEP | 0, 5 ~20hPa |
|---|
| Over Pressure Relief | ≤ 72hPa |
|---|
| Monitors: | Tidal Volume
Circuit Pressure
Alarm Set
MIN. Volume
Breath Rate
Trigger Level | Alarms: | High Airway Pressure Alarm
Low Airway Pressure Alarm
High MIN. Volume Alarm
Low MIN. Volume Alarm
High Rate Alarm
Apnea Alarm
Power Failure Alarm |
Environmental Requirements
| Relative humidity | 15%~95% |
|---|
| Ambient temperature | -18~ 50°C |
|---|
| Atmospheric pressure | 70~110kPa |
|---|
| Gas source | 0.28~0.6Mpa 60L/min |
|---|
| Power | AC220V, 50Hz |
|---|
Classification
ClassⅠ, Type B — by protection against electric shock.
IPX4 — by protection against harmful ingress of water, particulate
matter.
It is suitable for the patient who weighs more than 15KG.

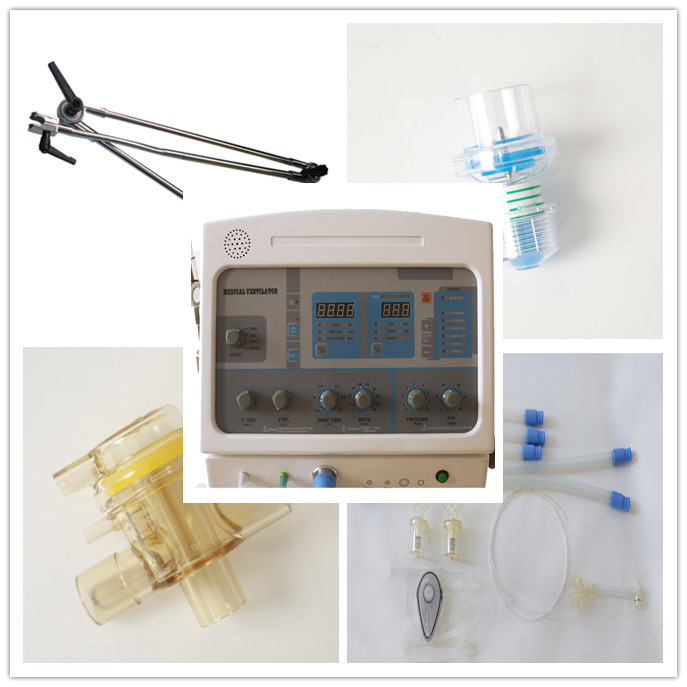

Configuration of UN100 Ventilator:
Standard configuration:
Ventilator, pressure-pressure-reducing valve, high-pressure oxygen
tube, lung simulator, breathing circuit, mask, head band, water
trap, humidifier, support arms, PEEP valve.
