PC200V Smallest Portable Handheld Veterinary Vital Signs Monitor
Medical Equipment
Advantages:
- Smallest and exquisite handheld vital sign monitor
- ECG:3/5 Leads; 3 waves
- Accurate measurement in 0.05% Low perfusion Index,the world leading
production in the movement environment
- Provide the parameter of PI( Perfusion Index 0.025%-20%)
- Accurate measurement in all kind of extreme environment measurement such as Big animal and Small animal
- NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude-Adjust)algorithm
and SAFD(Self-Adaptive-Fast-Deflation)algorithm
- Easy operation by 4"color TFT screen and Up to 100users ID switch
- Multiple vital signs measurement parameters for collocation
optional
l 3/5 Leads ECG, NIBP, SPO2, TEMP
l NIBP, SPO2, TEMP, CO2 - Two measurements mode:Spot,Monitoring
- Data storage capabilities,support for historical data view and
trend chart back to see
l In monitoring mode,can continuously record 48 hours of
measurement data
l In spot mode,100users ID,each user can store 200sets data - Support audio and visual alarm,support to set alarm uper and lower
limit values
- Lithium ion battery power supplyEasy operation by 3.5 inch color
TFT
Description:
Smallest Handheld Vital Sign Monitor in the world. The PC200V is mainly used to measure ECG, Spo2, NIBP, and TEMP. This monitor
is suitable for big and small animals, and could be applied in
general ward, including, but not limited to, ICU, CCU or ambulance,
and so forth.
Specifications:
| Display | 4 inch color TFT |
| Resolution | 320X480 |
| Indicator | Alarm light, Power light |
| Waveform | SPO2 and wavevalue |
| Alarm | Sensor off, Low power |
| Modes | Visual and Audio |
| Application | Big animal and Small animal
|
3 Leads Display:
5 Leads Display:
ECG
| Lead | 3/5 lead(R, L, F, N, C1 or RA, LA, LL, RL, V1) |
|---|
| Lead mode | I, II, III, aVR, aVL, aVF, V1, CAL |
|---|
| Wave | 3 waves |
|---|
| Gain selection | 0.25V/mV, 0.5V/mV, 1V/mV, 2V/mV |
|---|
| Heart Rate | Big animal | Small animal |
|---|
| Range | 15-300 bpm | 15-350 bpm |
|---|
| Accuracy | +/- 1% or +/- 1bpm Bigger | +/- 1% or +/- 1bpm Bigger |
|---|
| Resolution | 1bpm | 1bpm |
|---|
| Sensitivity | >200 uV( peak to peak ) | >200 uV( peak to peak ) |
|---|
| Bandwidth |
|---|
| Diagnostic | 0.05-100 Hz |
|---|
| Monitor | 0.5-40 Hz |
|---|
| Surgery | 1-20 Hz |
|---|
| Stronger Filter | 5-20 Hz |
|---|

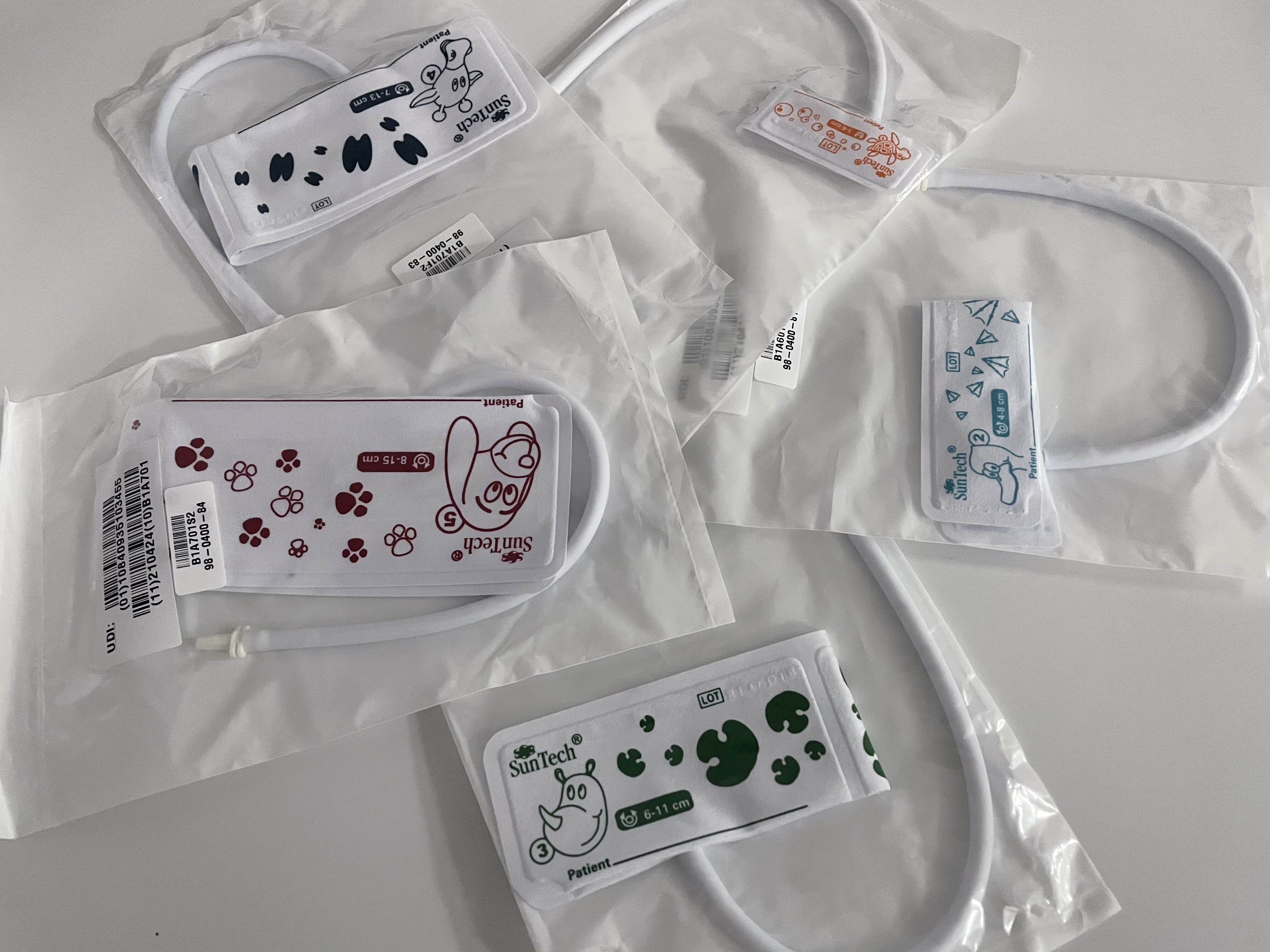

NIBP
| Adult | PED | NEO |
|---|
| SYS | 40~270mmHg | 40~200mmHg | 40~135mmHg |
| MEAN | 20~230mmHg | 20~165mmHg | 20~105mmHg |
| DIA | 10~210mmHg | 10~210mmHg | 10~210mmHg |
| Pulse Rate Range:40~240bpm | 40~240bpm | 40~150bpm | 40~95bpm |
| NIBP measurement accuracy | | ±3mmHg | ±3mmHg |
| Pulse rate measurement accuracy | | ≤2%(≥100bpm)or 2beats/min(<100BPM) | ≤2%(≥100bpm)or 2beats/min(<100BPM) |
| Independent software protection pressure | | |
| Adult:300mmHg | PED:240mmHg | NEO:150mmHg |
| Independent hardware protection pressure | | |
| Adult:320-330mmHg | PED:265-275mmHg | NEO:160-165mmHg |

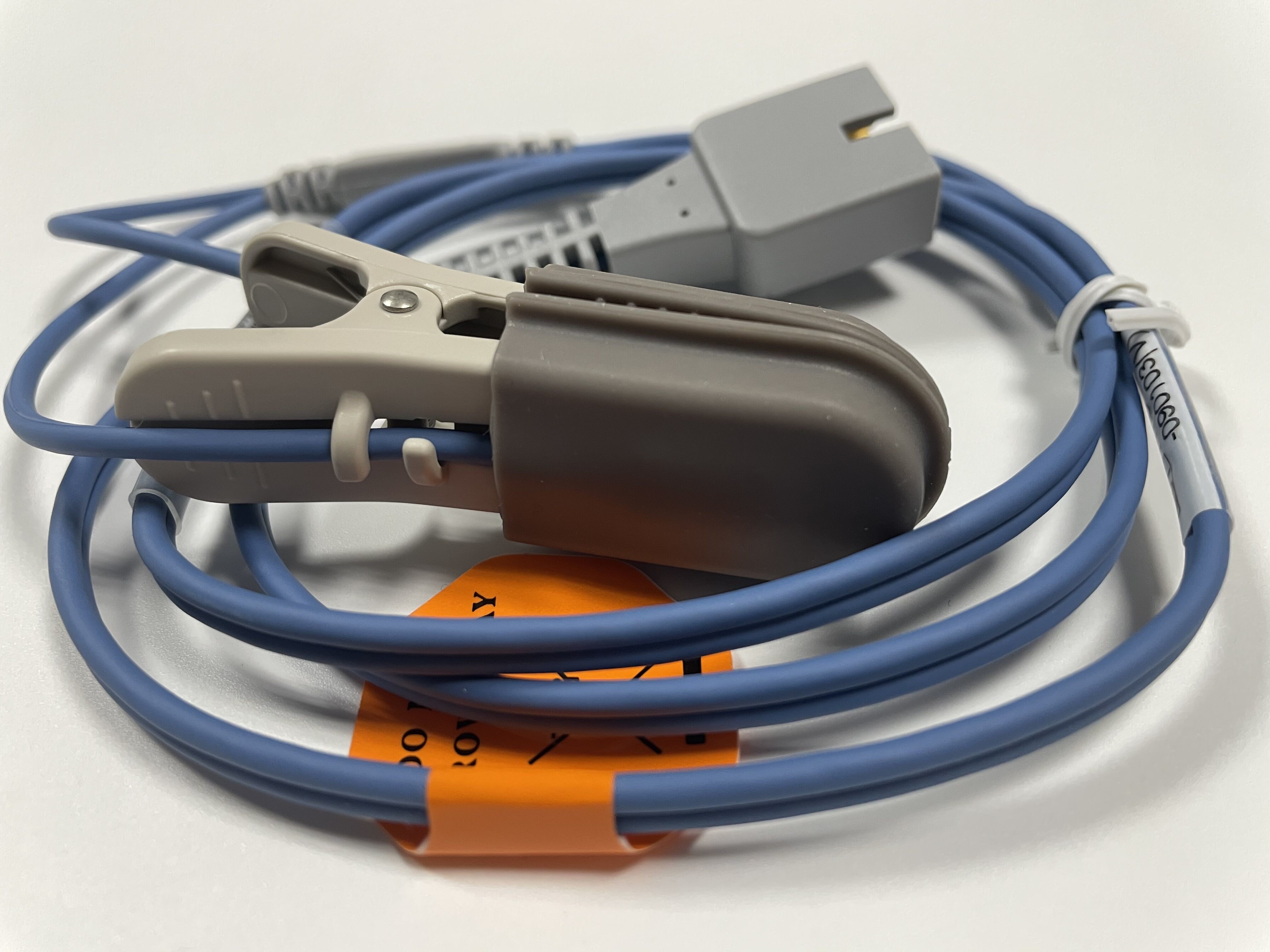

0xygen Saturation(%SPO2)
| Measurement Range | | | |
| Measure Range | SPO2:0-100% | PR:0-254BPM | Perfusion index:0.05%-20% |
| Accuracy Range | SPO2 saturation:70-100% | Pulse Rate:30-254BPM | Perfusion Index:0.025-20% |
| Measurement Accuracy | | | |
| SPO2 | | | |
| Adult(including pediatric): | ±2digit(70-100%) not defined(<70%) | Small animal:±3digits not defined(<70%) | On motion condition :±3digits |
| Pulse Rate | | | |
| Adult(including pediatric):±3digits | | Small animal:±3digits | On motion condition::±5digits |
| Perfusion Index:0.025%-20% | | | |
| Resolution | | | |
| SPO2 saturation:1% | | Pulse Rate:1BPM | |
TEMP
| Measurement range | 25-45°C |
|---|
| Resolution | 0.1°C |
|---|
| Accuracy | 0.1°C |
|---|
Power Type: Lithium ion battery
Operation time: 8 hours for normal operation

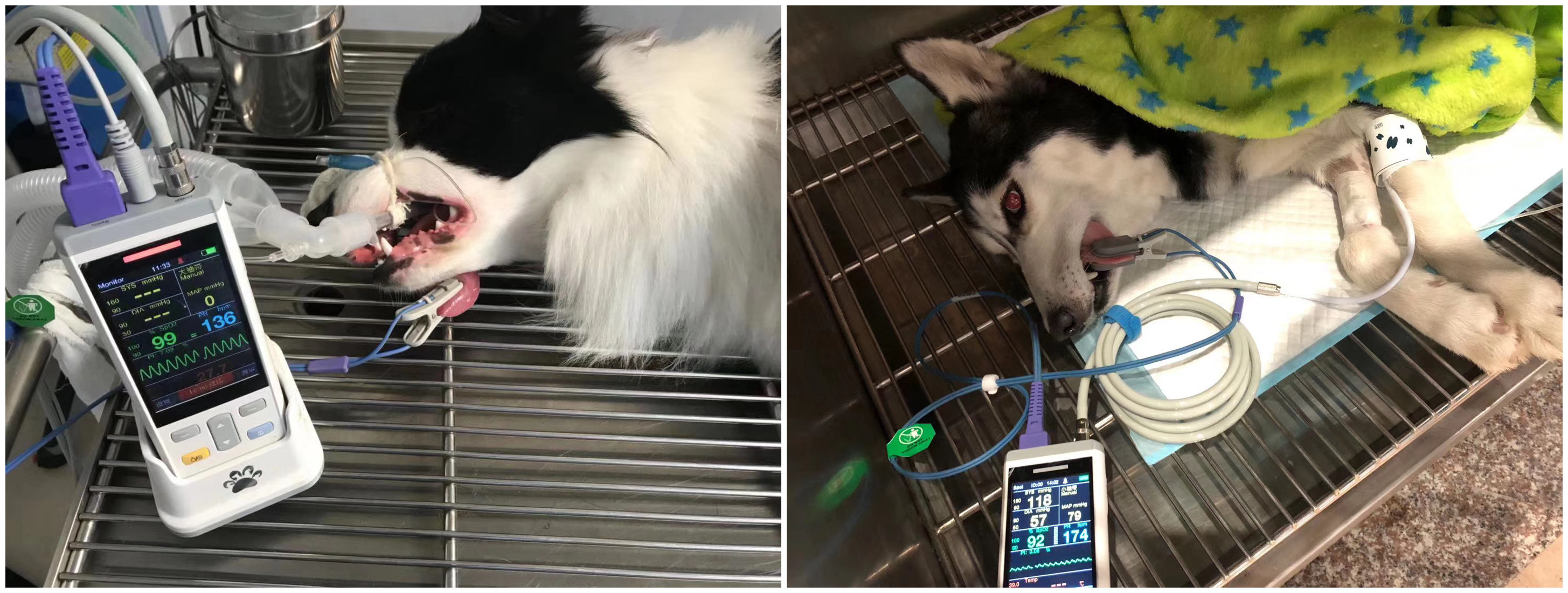

Applications:
PC100 Series products:
Union Medical Product Line:
Packing:
Factory:
Company Profile:
We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which
started in 2009 with leading engineers in China, and established in
2013. Union Medical is committed to the techniques and products of
monitoring, diagnosing ,supporting and treating the biological
information; serving the society; improving human health.
Union Medical focused on the development of patient monitoring solutions with
engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive
solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter
Module, Multigas Module etc.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia
Multigas monitors etc.
