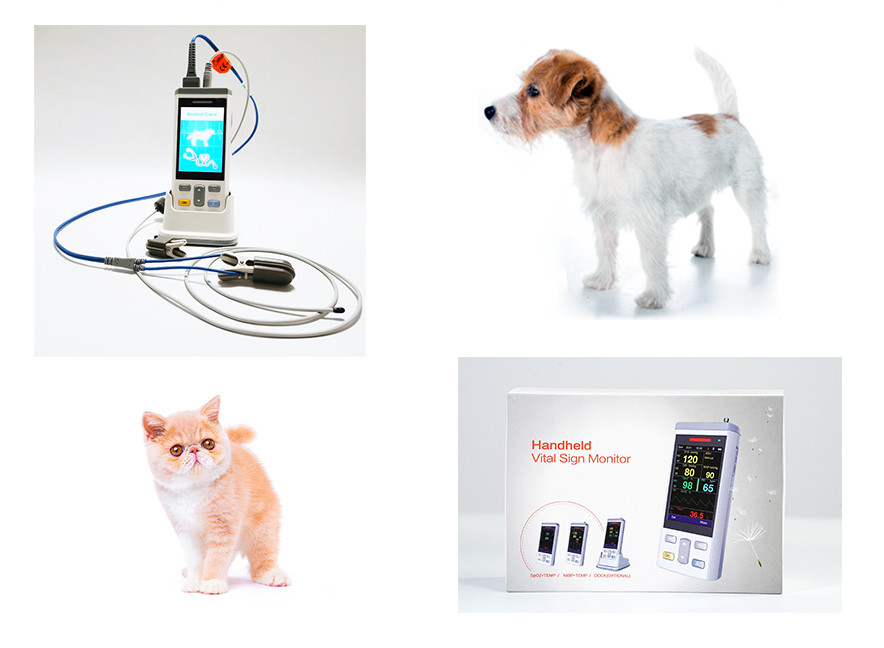

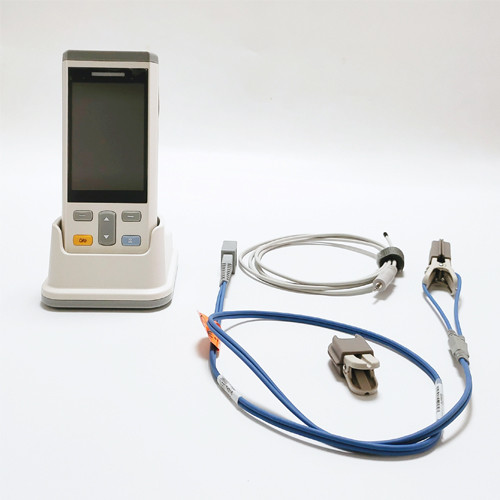

PC100SV Handheld Veterinary SPO2 Saturation Pulse Oximeter with
Rechargeable Lithium ion Battery Power
Advantages:
- Smallest and exquisite handheld vital sign monitor
- Accurate measurement in 0.05% Low perfusion Index,the world leading production in the movement environment
- Provide the parameter of PI( Perfusion Index 0.05%-20%)
- Suitable all kinds of animals and human
- Easy operation by 3.5 inch color TFT
- Up to 100 users ID switch
- Two measurements mode:Spot, Monitoring
- Data storage function: support data review, date trend and chart
- In monitoring mode, can continuously record 48 hours of measurement
data
- In spot mode, 100 users ID, each user can store 200sets data
- Support audio and visual alarm, support to set alarm upper and
lower limit values
- Lithium ion battery power supply
- Optional Charging dock
Description:
Smallest Handheld Vital Sign Monitor in the world. The PC100SV is mainly used to measure Spo2, Temperature and pulse rate. This
monitor is suitable for animal, and could be applied in general
ward, including, but not limited to, ICU, CCU or ambulance, and so
forth.
Specifications:
| Display | 3.5 inch color TFT |
| Resolution | 320X480 |
| Indicator | Alarm light, Power light |
| Waveform | SPO2 and wavevalue |
| Alarm | Sensor off, Low power |
| Modes | Visual and Audio |
| Application | Small and Big animals/pets |
Oxygen Saturation (%SpO2)
*Measurement range:
SpO2:0-100% PR:0-300bpm
Perfusion index: 0.05%-20%
*Accuracy range:
SpO2 saturation: 70-100%
Pulse rate: 20-254bpm
Perfusion Index: 0.05%-20%
*Accuracy:
SpO2: ±2(70%-100%) Motion: ±3
Pulse rate: ±3bpm Motion: ±5bpm
Temperature
*Measurement range: 25 -45 degree
*Resolution:0.1 degree
*Accuracy:0.1 degree
Power Type:
Lithium ion batteryOperation time: 8 hours for normal operation
Temperature:
Operating: 0-45 degree
Storage/ Transportation: -20-65 degree
Humidity:
Operating: 15% to 90% noncondensing
Storage: 0% to 95% noncondensing
Altitude: Up to 5000 meters
Size: Dimension 146mmX67mmX30mm
Weight 250g
More Options:
PC100 Series products:
Packing:
Union Medical Product Line:
Factory:
Company Profile:
We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which
started in 2009 with leading engineers in China, and established in
2013. Union Medical is committed to the techniques and products of
monitoring, diagnosing ,supporting and treating the biological
information; serving the society; improving human health.
Union Medical focused on the development of patient monitoring solutions with
engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive
solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter
Module, Multigas Module etc.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia
Multigas monitors etc.
