CE ISO UN8012 10 inch Touchscreen 12 Channel 12 Leads
Electrocardiogram ECG Machine with Automatic Interpretation
Advantages:
- 12 channel ECG machine with automatic interpretation
- Manual/Auto working Modes
- Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.
- 4.3 inch Color TFT LCD display ECG wave and friendly menu setting.
- Support touch panel and keypad input ways
- Support SD card storage.
- 120 seconds ECG wave freeze and replay function.
- Lead-off detection and alert
- Digital filtering, resisting baseline drift, AC and EMG
interference
- Built in USB/RS232 interface(ECGNET software optional)
- Built in rechargeable Li-ion battery support less than 3 hours continuously work.
- AC power supply at 90-240V@50/60Hz
Description:
UN8012 is a portable and high quality 12-channel ECG, which offer not
only normal thermal printing but also external printing solution.
It can used in hosipital, clinic and emergencies.
Specifications:
| LCD display | Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform
simultaneously,Time,Heart-rate.ect,support
patient name,Age,Sex and Hospital name input(Optional) |
|---|
| Safety | IEC, Class I, type CF |
|---|
| Leads | 12 STANDARD or CABRERA leads |
|---|
| Input circuit | Floating,Defibrillation protection |
|---|
| Patient Current Leakage | <10uA |
|---|
| Input circuit current | ≤0.1μA |
|---|
| CMRR | >100dB |
|---|
| Noise Level | ≤15μVp-p |
|---|
| Calibration Voltage | 1mV±2% |
|---|
| Print Channels | 12 channels, Rhythem lead selectable |
|---|
| Printing Output | 3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel |
|---|
| Operation Mode | automatic,manual,single channel 60s compressed record,Rhythm
analysis (R-R histogram and trend chart) |
|---|
| Thermal paper | 216mm*20M thermal paper in Z-fold packers or in rolls |
|---|
| Printing speed | 5; 6.25; 10; 12.5; 25; 50mm/s ± 3% |
|---|
| Printing system | Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm
(Horizontal),printing speed at 25mm/s |
|---|
| Recording sensitivity | 1.25,2.5,5,10,20,40mm/mV±2% |
|---|
| Input dynamics | ±500 mV |
|---|
| Input impedance | ≥50Mohm |
|---|
| Power Supply | 220V±10%, 50Hz±2%, 75VA 14.8V 4400mA Li-poly rechargeable battery pack (DC) |
|---|
| Frequency response | 0.05 to 150 Hz |
|---|
| Time constant | ≥3.2s |
|---|
| Data acquisition | 12 bits; 8000 samples/sec when printing, filtering and computing |
|---|
| Fuse Specification | Φ5x20mm 3.15A 250V |
|---|
| Patient Cable | standard 10 core |
|---|
| Report storage | 200 reports in built-in memory, support external SD card report presentation,review and re-printing. |
|---|
| Filter | Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) AC filter: (50Hz or 60Hz, -20dB) Drift filter: (0.5Hz,-3dB) |
|---|
| Indicator | Lead-off dectection |
|---|
| Carton size | 43*40*22.5cm(1pc) |
|---|
Strict QC process:

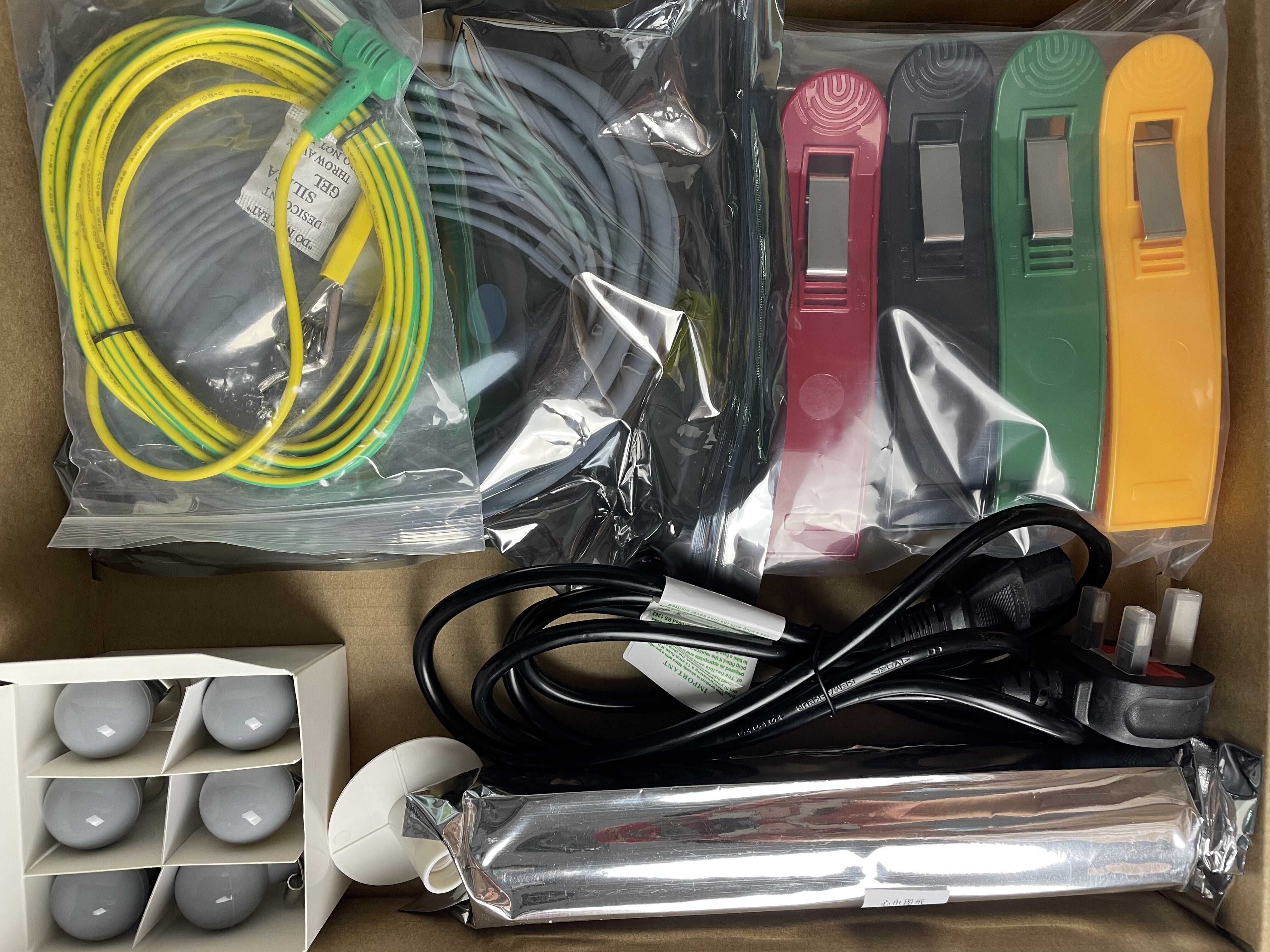

Accessories:
ECG Machine Series products:
Union Medical Product Line:
Packing:
Factory:
Company Profile:
We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which
started in 2009 with leading engineers in China, and established in
2013. Union Medical is committed to the techniques and products of
monitoring, diagnosing ,supporting and treating the biological
information; serving the society; improving human health.
Union Medical focused on the development of patient monitoring solutions with
engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive
solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter
Module, Multigas Module etc.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia
Multigas monitors etc.
